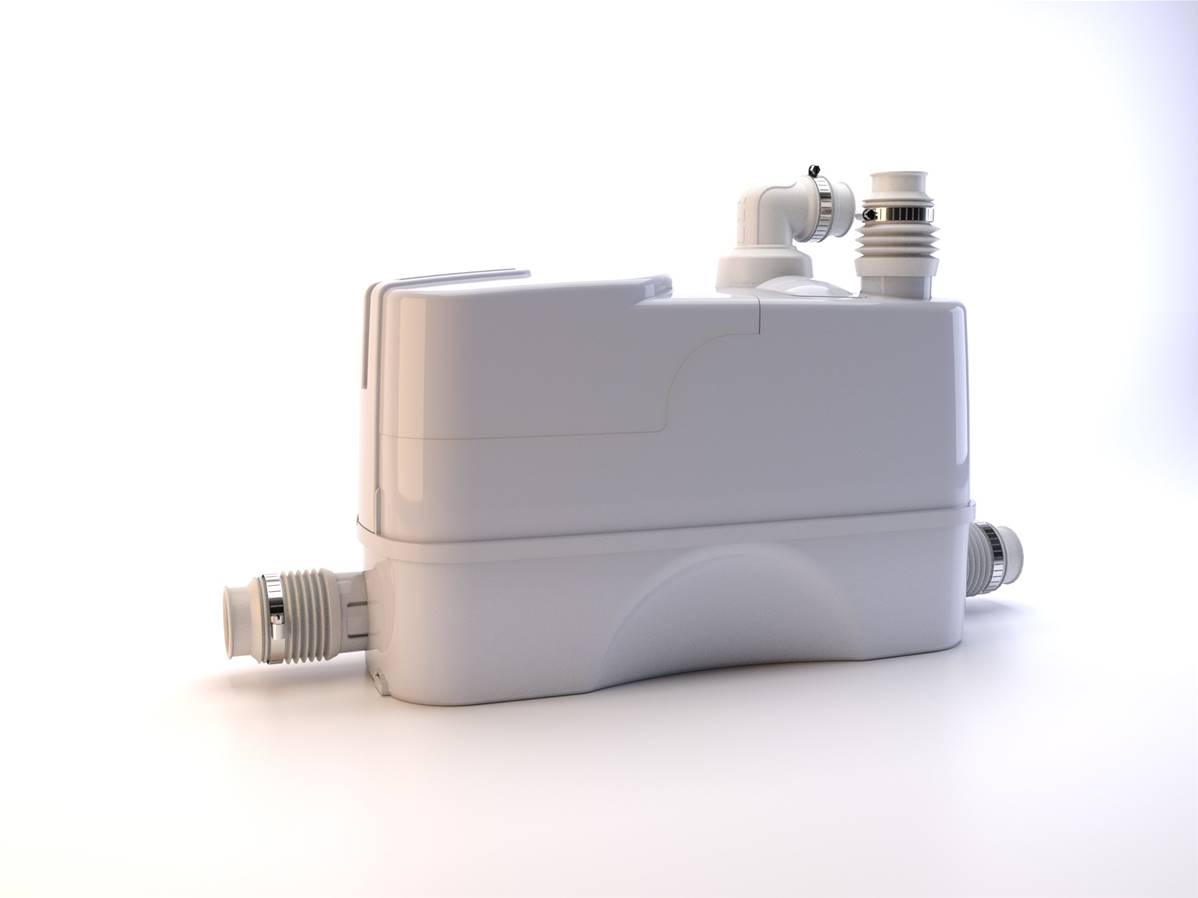

DAB Genix VT 030 Lifting Station 60185583
Lifting Station for whenever the wastewater coming from the WC, the shower, the washbasin or the bidet cannot be expelled by gravity. These lifting stations can be installed wherever there is the wish to add a toilet during new installations or constructions, renovations, or structural modifications. Silent operation and reliable performance, thanks to a powerful motor which allows to work with temperatures up to 90°C.
Extremely easy the maintenance in case of clog or motor blocking, with the possibility to dismount the motor subassembly only operating on two screws, and with the unique discharge tap that will allow a clean, and free of problems, maintenance. The non-return valves are integrated in the delivery pipe, and for the 130 models in the lateral bottom inlets.
Main product features:
- Fully automatic lifting station for pumping waste water from a shower, basin, and bidet, sink, dishwasher or washing machine
- Supplied with 1 top and 2 side inlet connections (for both high and low drain utilities)
- Pumps up to 6m vertically and over 70m horizontally
- Quiet motor with newly designed macerator offers robust and reliable operation
- Anti-odour system
Description
Lifting Station for whenever the wastewater coming from the WC, the shower, the washbasin or the bidet cannot be expelled by gravity. These lifting stations can be installed wherever there is the wish to add a toilet during new installations or constructions, renovations, or structural modifications. Silent operation and reliable performance, thanks to a powerful motor which allows to work with temperatures up to 90°C.
Extremely easy the maintenance in case of clog or motor blocking, with the possibility to dismount the motor subassembly only operating on two screws, and with the unique discharge tap that will allow a clean, and free of problems, maintenance. The non-return valves are integrated in the delivery pipe, and for the 130 models in the lateral bottom inlets.
Main product features:
- Fully automatic lifting station for pumping waste water from a shower, basin, and bidet, sink, dishwasher or washing machine
- Supplied with 1 top and 2 side inlet connections (for both high and low drain utilities)
- Pumps up to 6m vertically and over 70m horizontally
- Quiet motor with newly designed macerator offers robust and reliable operation
- Anti-odour system
Specifications
3-7 WORKING DAYS
1kg
540mm
430mm
230mm
Basin, Shower, Bidet, Bath, Shower, Appliances
Dab Pumps
Bathrooms
Macerators
White
1 1/2"
1 1/2"
6.7m3/h
0.32kW
Technopolymer, Stainless Steel
60185583
Grey Water Pump
DAB Genix
1x230V 50Hz
