Fernox

Fernox TF1 Sigma Mini Filter 22mm 62708

Category Boiler Filters
62708 62708
Fernox TF1 Sigma Mini Filter 22mm 62708 Fernox TF1 Sigma Mini Filter 22mm 62708
Fernox TF1 Sigma Mini Filter 22mm 62708 Fernox TF1 Sigma Mini Filter 22mm 62708
Fernox

Fernox TF1 Sigma Mini Filter 22mm 62708

Product Code: 62708

The TF1 Sigma Mini is a compact high-performance system filter that utilises a powerful neodymium magnet to protect your system against the damaging effects of corrosion. The TF1 Sigma Mini has the smallest footprint of any filter in the marketplace, which means it can be easily installed directly below a boiler or in restricted spaces on horizontal or vertical pipework.

  • One of the most compact filters in the market, specifically designed for restricted spaces with as little as 105mm clearance
  • Designed to ensure there is minimal pressure head loss in addition to maintaining a high collection efficiency, whilst ensuring the filter cannot block
  • Mess-free, fast and easy servicing via the filter drain point, without the need to dismantle component parts

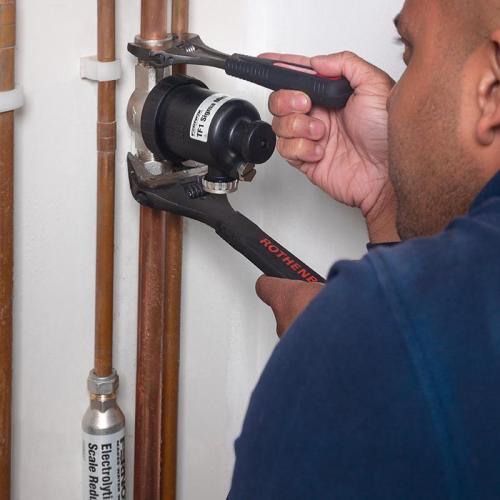

  • Easy and quick to installApplicationThe TF1 Sigma Mini is a magnetic system filter, specifically designed for use in tight spaces. The filter can be easily fitted onto horizontal, vertical, or any 360̾4; pipework orientation.The TF1 Sigma Mini should not be installed outside, and ideally on the return flow to the boiler.PerformanceSuitable fluids
  • Water
  • Inhibited Glycol Solutions
  • Fernox Chemical Range / System AdditivesMax percentage of glycol: 50%Max working pressure: 5bar (72psi)Max flow rate: 30 L/MNormal working temperature range: Filter suitable for working temperatures between 0̾4;C - 100̾4;CCapture rate: Up to 100% of system contaminatesOperating principle1- Contaminated system water enters the TF1 Sigma Mini via the manifold, then moves into the main body of the filter, carrying debris and particulate held in suspension by the water.2- As dirty water enters the filter body, it passes over the high-powered neodymium magnet assembly, with sludge and magnetite captured and retained with the filter.3- The combination of engineered flow paths through the filter, as well as the unique manifold design ensure debris is removed effectively without adversely impacting flow through this system. This promotes high capture rates for a filter of this size, while maintaining low pressure loss.4- All dirt captured within the filter can be easily discharged via the drain point. This procedure is shown in the cleaning guide and does not require system shutdown or for the filter to be disassembled.

    • Main product features:

    • Powerful neodymium magnet
    • Easy and quick to install
    • Mess-free, fast and easy servicing
    Category Boiler Filters
    Warranty 10-Year Manufacturer's Warranty

    Data Sheet
    Call for price
    Starting from
    £54.00 Pack of 1
    /
    incl. VAT
    RRP £54.00
    %
    - +
    Check stock in other branches
    Your collection branch is Plumb2u - Epsom, Epsom
    Add to quick list
    Compare

    Description

    The TF1 Sigma Mini is a compact high-performance system filter that utilises a powerful neodymium magnet to protect your system against the damaging effects of corrosion. The TF1 Sigma Mini has the smallest footprint of any filter in the marketplace, which means it can be easily installed directly below a boiler or in restricted spaces on horizontal or vertical pipework.

  • One of the most compact filters in the market, specifically designed for restricted spaces with as little as 105mm clearance
  • Designed to ensure there is minimal pressure head loss in addition to maintaining a high collection efficiency, whilst ensuring the filter cannot block
  • Mess-free, fast and easy servicing via the filter drain point, without the need to dismantle component parts
  • Easy and quick to installApplicationThe TF1 Sigma Mini is a magnetic system filter, specifically designed for use in tight spaces. The filter can be easily fitted onto horizontal, vertical, or any 360̾4; pipework orientation.The TF1 Sigma Mini should not be installed outside, and ideally on the return flow to the boiler.PerformanceSuitable fluids
  • Water
  • Inhibited Glycol Solutions
  • Fernox Chemical Range / System AdditivesMax percentage of glycol: 50%Max working pressure: 5bar (72psi)Max flow rate: 30 L/MNormal working temperature range: Filter suitable for working temperatures between 0̾4;C - 100̾4;CCapture rate: Up to 100% of system contaminatesOperating principle1- Contaminated system water enters the TF1 Sigma Mini via the manifold, then moves into the main body of the filter, carrying debris and particulate held in suspension by the water.2- As dirty water enters the filter body, it passes over the high-powered neodymium magnet assembly, with sludge and magnetite captured and retained with the filter.3- The combination of engineered flow paths through the filter, as well as the unique manifold design ensure debris is removed effectively without adversely impacting flow through this system. This promotes high capture rates for a filter of this size, while maintaining low pressure loss.4- All dirt captured within the filter can be easily discharged via the drain point. This procedure is shown in the cleaning guide and does not require system shutdown or for the filter to be disassembled.

    • Main product features:

    • Powerful neodymium magnet
    • Easy and quick to install
    • Mess-free, fast and easy servicing
    Weight

    3kg

    Height

    750mm

    Width

    1730mm

    Length

    1280mm

    Brand

    fernox

    Categories

    Water treatments & Central Heating Filters

    Category

    Boiler Filters

    MPN

    62708

    Product Type

    Magnetic Boiler Filter

    Range

    Fernox TF1

    Description

    The TF1 Sigma Mini is a compact high-performance system filter that utilises a powerful neodymium magnet to protect your system against the damaging effects of corrosion. The TF1 Sigma Mini has the smallest footprint of any filter in the marketplace, which means it can be easily installed directly below a boiler or in restricted spaces on horizontal or vertical pipework.

  • One of the most compact filters in the market, specifically designed for restricted spaces with as little as 105mm clearance
  • Designed to ensure there is minimal pressure head loss in addition to maintaining a high collection efficiency, whilst ensuring the filter cannot block
  • Mess-free, fast and easy servicing via the filter drain point, without the need to dismantle component parts
  • Easy and quick to installApplicationThe TF1 Sigma Mini is a magnetic system filter, specifically designed for use in tight spaces. The filter can be easily fitted onto horizontal, vertical, or any 360̾4; pipework orientation.The TF1 Sigma Mini should not be installed outside, and ideally on the return flow to the boiler.PerformanceSuitable fluids
  • Water
  • Inhibited Glycol Solutions
  • Fernox Chemical Range / System AdditivesMax percentage of glycol: 50%Max working pressure: 5bar (72psi)Max flow rate: 30 L/MNormal working temperature range: Filter suitable for working temperatures between 0̾4;C - 100̾4;CCapture rate: Up to 100% of system contaminatesOperating principle1- Contaminated system water enters the TF1 Sigma Mini via the manifold, then moves into the main body of the filter, carrying debris and particulate held in suspension by the water.2- As dirty water enters the filter body, it passes over the high-powered neodymium magnet assembly, with sludge and magnetite captured and retained with the filter.3- The combination of engineered flow paths through the filter, as well as the unique manifold design ensure debris is removed effectively without adversely impacting flow through this system. This promotes high capture rates for a filter of this size, while maintaining low pressure loss.4- All dirt captured within the filter can be easily discharged via the drain point. This procedure is shown in the cleaning guide and does not require system shutdown or for the filter to be disassembled.

    • Main product features:

    • Powerful neodymium magnet
    • Easy and quick to install
    • Mess-free, fast and easy servicing
    Weight

    3kg

    Height

    750mm

    Width

    1730mm

    Length

    1280mm

    Brand

    fernox

    Categories

    Water treatments & Central Heating Filters

    Category

    Boiler Filters

    MPN

    62708

    Product Type

    Magnetic Boiler Filter

    Range

    Fernox TF1
