Geberit Alpha 82cmH Concealed Cistern 109.002.00.1

109.002.00.1 109.002.00.1
Geberit Alpha 82cmH Concealed Cistern 109.002.00.1 Geberit Alpha 82cmH Concealed Cistern 109.002.00.1
Geberit Alpha 82cmH Concealed Cistern 109.002.00.1 Geberit Alpha 82cmH Concealed Cistern 109.002.00.1

Geberit Alpha 82cmH Concealed Cistern 109.002.00.1

Product Code: 109.002.00.1

This Geberit Alpha Cistern with an installation height of 82cm high provides an innovative concealed solution for floor-standing back-to-wall WCs in small spaces opening up opportunities when it comes to the design of your bathroom.Designed to maximise bathroom space its dual top or front flush capability makes it an excellent choice for multiple bathroom layouts, there are no borders anymore to your creativity in bathroom design and the implementation of your ideas.Whether you're upgrading your ensuite, optimizing a small space, or installing a back-to-wall WC in a challenging area (under a window, stairs, or roof pitch), this unit delivers flexibility, reliability, and efficiency.Key Features & Benefits:

  • Space-Saving: Depth of 12cm & installation height of 82cm, making it ideal for compact bathrooms and ensuites
  • Dual Flush System - Designed for efficient water usage, offering dual flush functionality via top or front actuation
  • Leakproof Design: The cistern is blow-molded in a single piece to prevent leaks, ensuring reliability
  • Compatibility: Works with Geberit pneumatic flush buttons, making it versatile for various bathroom aesthetics and environmentsTechnical Specifications:

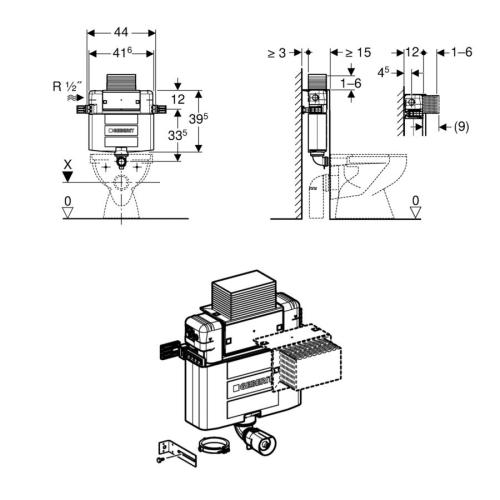

  • Installation Height: 82cm
  • Width: 44cm
  • Depth: 12cm

    Application Purposes:

  • For part height installations
  • For floor-standing back-to-wall WCs in accordance with EN 33:2011Features:
  • WRAS approved
  • Cistern fully insulated against condensation
  • Cistern fulfils standard requirements in accordance with EN 14055, Class II
  • Dual flush front or top actuation
  • Water supply connection on the rear or left
  • Welded flush bendTechnical Data:
  • Flush volume, factory setting 5.8 l/3l
  • Flush volume small, adjustment range 3-4lWhat’s Included:
  • Water supply connection unit R 1/2", with integrated angle stop valve and adapter ring
  • Protection box for service opening
  • 2 fixing brackets
  • Flush bend extension, ø45mm
  • Fastening and protection materials
  • Protection plug

  • Main product features:

    • WRAS approved
    • Cistern fully insulated against condensation
    • Cistern fulfils standard requirements in accordance with EN 14055, Class II
    • Dual flush front or top actuation
    • Water supply connection on the rear or left
    • Welded flush bend
    Call for price
    Starting from
    £92.45 Pack of 1
    /
    incl. VAT
    RRP £92.45
    %
    - +
    Your collection branch is Plumb2u - Epsom, Epsom
    Compare

    Description

    This Geberit Alpha Cistern with an installation height of 82cm high provides an innovative concealed solution for floor-standing back-to-wall WCs in small spaces opening up opportunities when it comes to the design of your bathroom.Designed to maximise bathroom space its dual top or front flush capability makes it an excellent choice for multiple bathroom layouts, there are no borders anymore to your creativity in bathroom design and the implementation of your ideas.Whether you're upgrading your ensuite, optimizing a small space, or installing a back-to-wall WC in a challenging area (under a window, stairs, or roof pitch), this unit delivers flexibility, reliability, and efficiency.Key Features & Benefits:

  • Space-Saving: Depth of 12cm & installation height of 82cm, making it ideal for compact bathrooms and ensuites
  • Dual Flush System - Designed for efficient water usage, offering dual flush functionality via top or front actuation
  • Leakproof Design: The cistern is blow-molded in a single piece to prevent leaks, ensuring reliability
  • Compatibility: Works with Geberit pneumatic flush buttons, making it versatile for various bathroom aesthetics and environmentsTechnical Specifications:
  • Installation Height: 82cm
  • Width: 44cm
  • Depth: 12cm

    Application Purposes:

  • For part height installations
  • For floor-standing back-to-wall WCs in accordance with EN 33:2011Features:
  • WRAS approved
  • Cistern fully insulated against condensation
  • Cistern fulfils standard requirements in accordance with EN 14055, Class II
  • Dual flush front or top actuation
  • Water supply connection on the rear or left
  • Welded flush bendTechnical Data:
  • Flush volume, factory setting 5.8 l/3l
  • Flush volume small, adjustment range 3-4lWhat’s Included:
  • Water supply connection unit R 1/2", with integrated angle stop valve and adapter ring
  • Protection box for service opening
  • 2 fixing brackets
  • Flush bend extension, ø45mm
  • Fastening and protection materials
  • Protection plug

  • Main product features:

    • WRAS approved
    • Cistern fully insulated against condensation
    • Cistern fulfils standard requirements in accordance with EN 14055, Class II
    • Dual flush front or top actuation
    • Water supply connection on the rear or left
    • Welded flush bend
    Height

    390mm

    Width

    440mm

    Length

    120mm

    Brand

    Geberit

    Categories

    Concealed Cisterns and Buttons

    Category

    Concealed Cisterns

    MPN

    109.002.00.1

    Product Type

    Concealed Cistern

    Range

    Geberit Alpha
