Geberit Alpha 98cmH Frame & Cistern, plus Alpha01 Round Flush Plate 458.038.21.2

Product Code: 458.038.21.2

The Geberit Alpha 98cm Frame & Cistern for Wall-Hung WC with Alpha01 Round Chrome Dual Flush Plate offers a robust and reliable solution for modern bathroom installations. Designed for durability and ease of maintenance, this frame system is a product of over 60 years of Geberit's research and development in concealed cisterns.At 98cm high this Geberit frame is perfect for under window installations or for part-height installations in drywall construction.Product Highlights:

Dual Flush Technology: Choose between two flush volumes to conserve water

Leakproof Design: The cistern is blow-molded in a single piece to prevent leaks, ensuring reliability

Compatibility: Works with Geberit pneumatic flush buttons, making it versatile for various bathroom aesthetics and environments

Easy Maintenance: Flush plate removal grants quick access to all essential components, with Geberit offering a 25-year spare parts guaranteeSix Reasons to Choose a Geberit Frame & Cistern:1.Strength: Engineered to support up to 400kg (63 stone), ensuring stability without wobbling2.Hygienic: Wall-mounted, keeping the floor clear of pipes and exposed surfaces where dirt and bacteria could gather3.Simple Maintenance: Accessible parts make for easy repairs and adjustments4.Noise Control: Designed with acoustic solutions for quiet operation5.Long-Lasting: Proven technology with over 70 million installations6.Water Tightness: Each cistern is tested individually for impermeabilityTechnical Specifications:

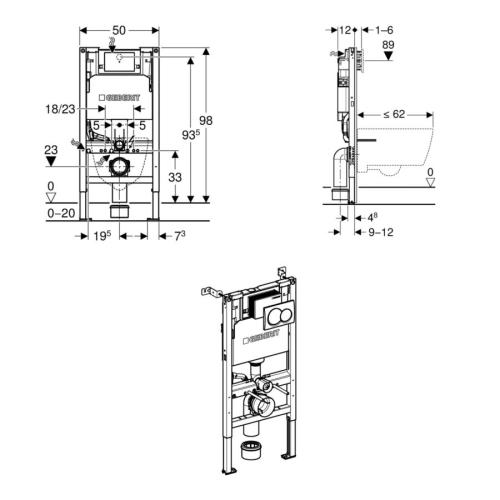

Height: 98cm

Width: 50cm

Depth: 12cm

Application Purposes:

For metal and wood frame walls, for part-height installations

For floor constructions 0-20cm

For wall-hung WCs in accordance with EN 33:2011, & projections up to 62cmKey Features:

WRAS approved

Powder-coated self-supporting frame

Galvanised leg supports protected against corrosion, foot plates made of plastic

Tool-free connection bend mounting

Cistern fully insulated against condensation

Cistern fulfils standard requirements in accordance with EN 14055, Class II

Dual flush front actuation

Water supply connection on the rear or top centre

With conduit pipe for feed pipe for Geberit AquaClean shower toilets

Fastening option for electrical connectionsTechnical Data:

Flush volume, factory setting 5.8 l/3l

Flush volume small, adjustment range 3-4lWhat’s Included:

Alpha01 Round Chrome Dual Flush Plate

Water supply connection unit R 1/2", with integrated angle stop valve and adapter ring

Protection box for service opening

2 wall anchors and 2 fixing brackets

Connection set for WC, Ã¸90mm

Connection bend 90° made of PE-HD, Ã¸90mm

Adapter socket made of PE-HD, Ã¸90/110mm

Fastening and protection materials

Main product features:

WRAS approved
Powder-coated self-supporting frame
Galvanised leg supports protected against corrosion, foot plates made of plastic
Tool-free connection bend mounting
Cistern fully insulated against condensation
Cistern fulfils standard requirements in accordance with EN 14055, Class II
Dual flush front actuation
Water supply connection on the rear or top centre
With conduit pipe for feed pipe for Geberit AquaClean shower toilets
Fastening option for electrical connections

Category Concealed Cisterns

Data Sheet
