Geberit Duofix WC Frame, for Wall Hung Pans For Omega Cistern 111.004.00.1

Product Code: CC00383

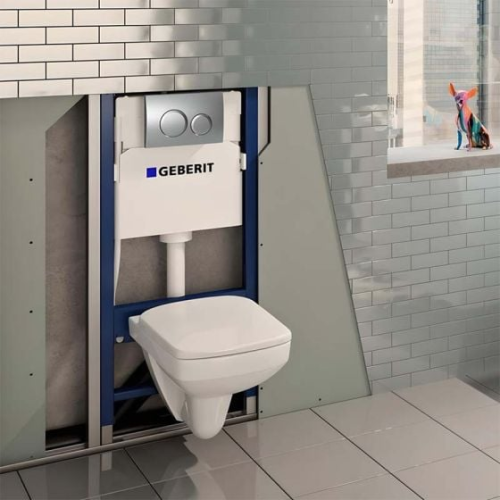

Geberit wall-hung systems are installed behind the wall, giving your bathroom more space and a simple, sleek design. The system consists of an installation frame that integrates the cistern in the wall so that it saves space, and a flush plate.Application:

For drywall construction

For installation in part-height pre-wall installations

For installation in part-height Geberit Duofix system walls

For wall-hung WCs with connection dimensions in accordance with EN 33:2011

For wall-hung WCs with projection up to 62 cm

For dual flush

For floor constructions 0-20 cmWhat's Included:

1x Geberit WC Frame 1120mm

1x Geberit Alpha 6/3L Concealed Cistern for Wall Mounted Pans - 120mm

1x Geberit Alpha01 Square Flush Plate - ChromeKey Features

Power coated self-supporting frame & Galvanized feet

Frame prepared for support brackets for WC ceramic appliances with small contact surfaces

Non-slip leg supports & rotatable foot plates

Fastening for connection bend, sound-absorbing

Concealed cistern with top or front actuation

Concealed cistern fully insulated against condensation

Immediate post flush possible with factory setting

Tool-free installation and maintenance work on concealed cistern

Water supply connection on the left or rear left

Protection cover box for service opening protects against moisture and dirt

Protection box for service opening can be cut to length

Equipped with conduit pipe for feed pipe for connection of Geberit AquaClean shower toilets

With fastening option for electrical connectionSpecifications

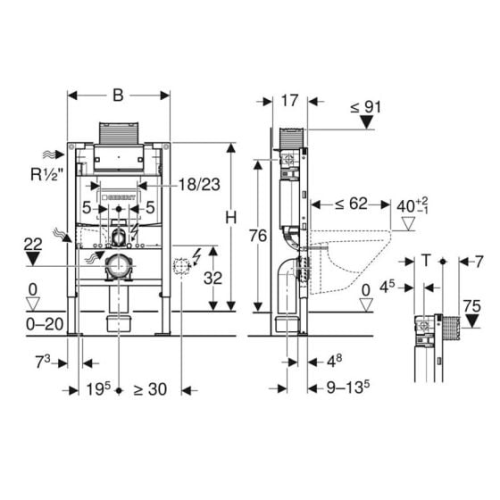

Frame with 9mm drilling holes for fastening in wood frame construction

Feet adjustable 20 cm

Connection bend can be mounted without tools at different depths, adjustable range 45 mm

Cistern fulfils standard requirements in accordance with EN 14055, Class II

Foot plate depth suitable for installation in U-profiles UW 50 and UW75 and Geberit Duofix system rails

Main product features:

1120mm frame height
Geberit Alpha concealed cistern included
Statically self-supporting frame
Supports projections up to 620mm
Alternative fastening point for wall anchors
Designed for wall-hung WCs
10 year guarantee
