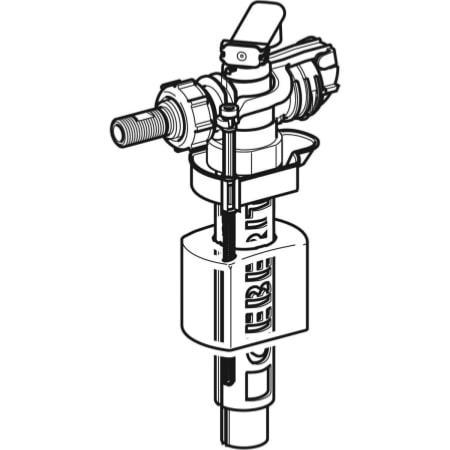

Geberit Fill Valve Type 380AG 3/8" 244.595.00.1
This Geberit fill valve type 380AG, lateral water supply connection is for for Geberit Monolith sanitary modules for WC, as well as geberit concealed cisterns. This fill valve is also for greywater (rainwater) with a pH value 6.0-9.5, if a filter system is used.
This product is the replacement part for the Geberit Fill Valve Type 380 Lateral Water Supply Connection Monolith 242.985.00.1.
Main product features:
- Threaded nipple made of brass
- Adjustable filling height
- Water supply connection on the left/right
- Fulfils requirements in accordance with BS 1212-4:2016, WRAS Section 2075
- Backflow prevention type AG (free outlet with overflow)
Description
This Geberit fill valve type 380AG, lateral water supply connection is for for Geberit Monolith sanitary modules for WC, as well as geberit concealed cisterns. This fill valve is also for greywater (rainwater) with a pH value 6.0-9.5, if a filter system is used.
This product is the replacement part for the Geberit Fill Valve Type 380 Lateral Water Supply Connection Monolith 242.985.00.1.
Main product features:
- Threaded nipple made of brass
- Adjustable filling height
- Water supply connection on the left/right
- Fulfils requirements in accordance with BS 1212-4:2016, WRAS Section 2075
- Backflow prevention type AG (free outlet with overflow)
Specifications
0.75kg
60mm
150mm
250mm
Geberit
Toilet Replacement Parts
Filling Valves
White / Blue
11.2cm
0.1-10 Bar
25.5cm
25 °C
40 °C
244.595.00.1
Filling Valve
6.1cm
