APPLICATION PURPOSES

• For Geberit exposed cisterns with bottom water supply connection
• For ceramic cisterns
• For Geberit low-height concealed cisterns
• For greywater (rainwater) with pH value 6.0-9.5, if a filter system is used
• For potable water
• For water supply connections 1/2''CHARACTERISTICS
• Adjustable filling height
• Water supply connection on the bottom
• Threaded nipple made of plastic
• Backflow prevention type AG (free outlet with overflow)
• Fulfils requirements in accordance with BS 1212-4:2016, WRAS Section 2075TECHNICAL DATA
• Flow pressure 0.1-10 bar
• Storage temperature Í°4; 40 °C
• Water temperature max. 25 °C
• Durchfluss bei 50 kPa / 0.5 bar 0.06 l/s
• Durchfluss bei 300 kPa / 3 bar 0.17 l/s
• Minimum flow pressure 0.1 bar

Main product features:

• Bottom Water Connection:Connects to the water supply from the bottom of the cistern.
• Plastic Nipple:Includes a plastic threaded nipple for durability.

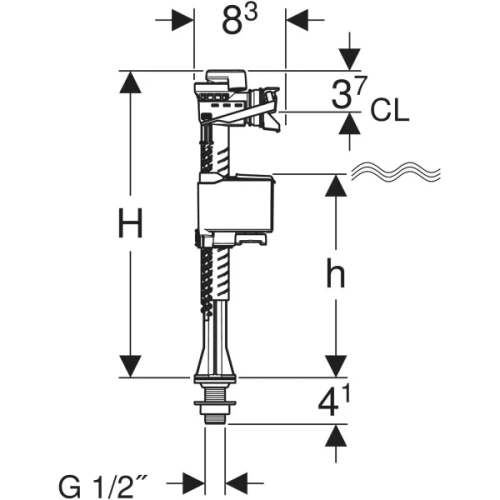

• Adjustable Filling Height:Allows for customization of the water level.
• Delay Fill Function:Can be activated to fill the cistern only after the flush valve closes, saving water.
• Quiet Operation:Engineered for smooth and quiet refilling.
• Backflow Prevention (Type AG):Ensures safety with a free outlet and overflow protection.
• Wide Compatibility:Fits most common close-coupled ceramic cisterns from various manufacturers.
