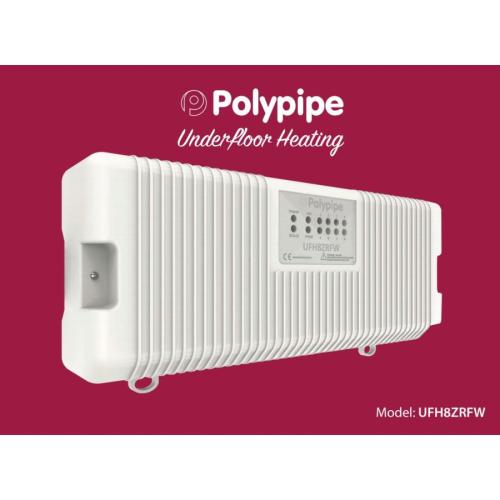

Polypipe 8 Zone Wiring Centre (Wireless) 230v White UFH8ZRFW
The UFH8ZRFW is an 8 Zone central wiring centre for use with PolypipeRF thermostats.
The UFH8ZRFW can be used to control any actuator or valve whichrequires a 230v AC signal to open.
For mid position valves and thoserequiring a closing signal, a changeover relay isrequired.At the same time the UFH8ZRFW oers the ability to operate a boiler orother heat source through a volt free output with changeover contacts,which gives you both a heat on signal and a heat o signal.
Additional outputs designed for use with hot water or underoorheating systems, are also included asstandard.
These are the pumpand valve outputs which would normally operate a manifold pumpor a manifold valve, and the H/W output which is used to send a hotwater on and hot water o signal. Any output which is not neededcan be ignored.
99 channel numbers are available allowing to 99 dierent UFH8ZRFWwiring centresto be operated in close proximity. With 8 thermostatsper wiring centre this gives you up to 792 distinct heating zones. When wiring directly to the heatsource is not possible, a radio link isprovided to remotely enable a separate receiver, the UFHBSW.Testswitches are included for the installation engineer and furtheroptions include creepage protection and pump delay
Main product features:
- Creepage funtion for Hot weather: Once enabled the UFH8ZRFW will operate each valve or pump for 1 minute, only if the outputs have not been operated by a thermostat, within the preceding 24 hours
- Pump Delay:This function delays the operation of the pump and boiler for 2 minutesto give the actuators and valves time to open.
- Engineers Test Switches: These switches allow the installation engineer to test the operation of the valves, actuators, pumps hot water or boiler, without having to install the thermostats
- Operation: Each RF thermostat used on this system can be congured as a thermostat for either a radiator zone, underoor heating zone or inEach RF thermostat used on this system can be congured as a thermostat for either a radiator zone, underoor heating zone or in
- Part number: UFH8ZRFW
Description
The UFH8ZRFW is an 8 Zone central wiring centre for use with PolypipeRF thermostats.
The UFH8ZRFW can be used to control any actuator or valve whichrequires a 230v AC signal to open.
For mid position valves and thoserequiring a closing signal, a changeover relay isrequired.At the same time the UFH8ZRFW oers the ability to operate a boiler orother heat source through a volt free output with changeover contacts,which gives you both a heat on signal and a heat o signal.
Additional outputs designed for use with hot water or underoorheating systems, are also included asstandard.
These are the pumpand valve outputs which would normally operate a manifold pumpor a manifold valve, and the H/W output which is used to send a hotwater on and hot water o signal. Any output which is not neededcan be ignored.
99 channel numbers are available allowing to 99 dierent UFH8ZRFWwiring centresto be operated in close proximity. With 8 thermostatsper wiring centre this gives you up to 792 distinct heating zones. When wiring directly to the heatsource is not possible, a radio link isprovided to remotely enable a separate receiver, the UFHBSW.Testswitches are included for the installation engineer and furtheroptions include creepage protection and pump delay
Main product features:
- Creepage funtion for Hot weather: Once enabled the UFH8ZRFW will operate each valve or pump for 1 minute, only if the outputs have not been operated by a thermostat, within the preceding 24 hours
- Pump Delay:This function delays the operation of the pump and boiler for 2 minutesto give the actuators and valves time to open.
- Engineers Test Switches: These switches allow the installation engineer to test the operation of the valves, actuators, pumps hot water or boiler, without having to install the thermostats
- Operation: Each RF thermostat used on this system can be congured as a thermostat for either a radiator zone, underoor heating zone or inEach RF thermostat used on this system can be congured as a thermostat for either a radiator zone, underoor heating zone or in
- Part number: UFH8ZRFW
Specifications
0.1kg
polypipe
Heating Controls
Wiring Centres
White
UFH8ZRFW
8.0
230 V a.c. / 1 / 50 Hz
UFH Wiring Centre
Modern
800g
