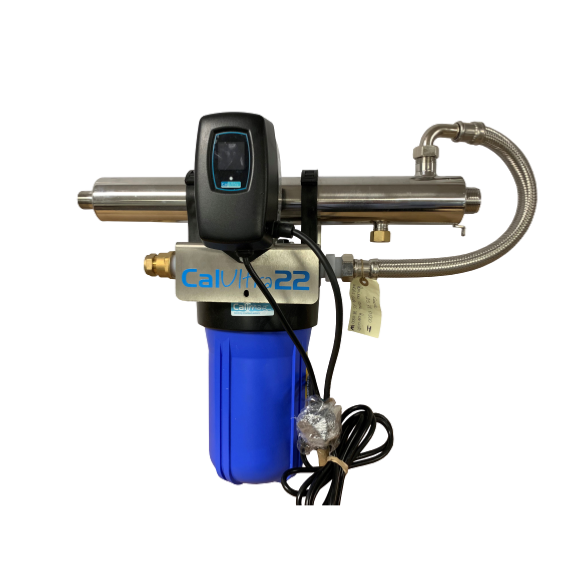

Calmag CalUltra 22 Ultra Violet Disinfection Unit UV-CALULTRA-22

(Code: UV- CALULTRA-22)
Calmag CalUltra 22 Ultra Violet Disinfection Unit UV-CALULTRA-22. 22 litres per minute stainless steel unit complete with filter
£ 579.00
@import url(,400); #the-final-countdown { background: #333; font-family: 'Lato', sans-serif; text-align: center; color: #eee; text-shadow: 1px 1px 5px black; padding: 1rem 0; font-size: 3rem; border: 1px solid #000; }
  1. Description of Calmag CalUltra 22 Ultra Violet Disinfection Unit UV-CALULTRA-22:

    This product is the Calmag CalUltra 22 Ultra Violet Disinfection Unit UV- CALULTRA-22. UV (ultraviolet) technology is proven to control microbiological (bacteria and virus) issues in water including E.coli, Cryptosporidium and Giardia Iamblia. CalUltra systems introduce a technology never before seen in a UV system. Truly modular in design, the CalUltra allows easy upgradeability in the future.
    This UV disinfection unit works exposing the water to UV light of a specific wavelength. For achieving the disinfection, the water enters the UV chamber and flows into an annular space between the quartz sleeve and the outside chamber wall. The water is exposed to the UV light from the mercury germicidal lamp thereby disinfecting the micro-organisms and rendering it dead. The main features for the CalUltra range are:
    ✔ Colour user interface with full diagnostics and warnings including QR codes
    ✔ "Future-proof" expandability port for future upgrade and options
    ✔ Single ended, 304 stainless steel, polished reactors. Systems include an integrant sensor port to allow for sensor upgradeability in the future
    ✔ Designed and manufactured to ASME pressure vessel standards
    ✔ Flow rate stated at 95% UVT at a dose of 30mJ/cm²
    ✔ User friendly bayonet style lamp connector (quick 1/4 turn removal with no extra tools needed)
    ✔ Reliable, industry proven low pressure (LP) coated UV lamps with ceramic bases for durability and a 9000 hour life (1 year)
    ✔ Constant current electronic controller (one controller for all systems) in a splash-proof case
    CalUltra comes with a unique controller which features a full colour LCD screen providing the user with a detailed description of the system's performance in addition to providing any applicable fault message and system diagnostics.
    ✔ Power-up sequence
    ✔ Operational screens
    ✔ Lamp countdown sequence
    ✔ Lamp countdown reset sequence
    ✔ Additional features - optional and modular

  2. Features of Calmag CalUltra 22 Ultra Violet Disinfection Unit UV-CALULTRA-22:

    ✔ Complete UV unit
    ✔ 22 litres per minute
    ✔ Includes 10" filter
    ✔ Includes 10" sediment cartridge
    ✔ Includes full installation kit

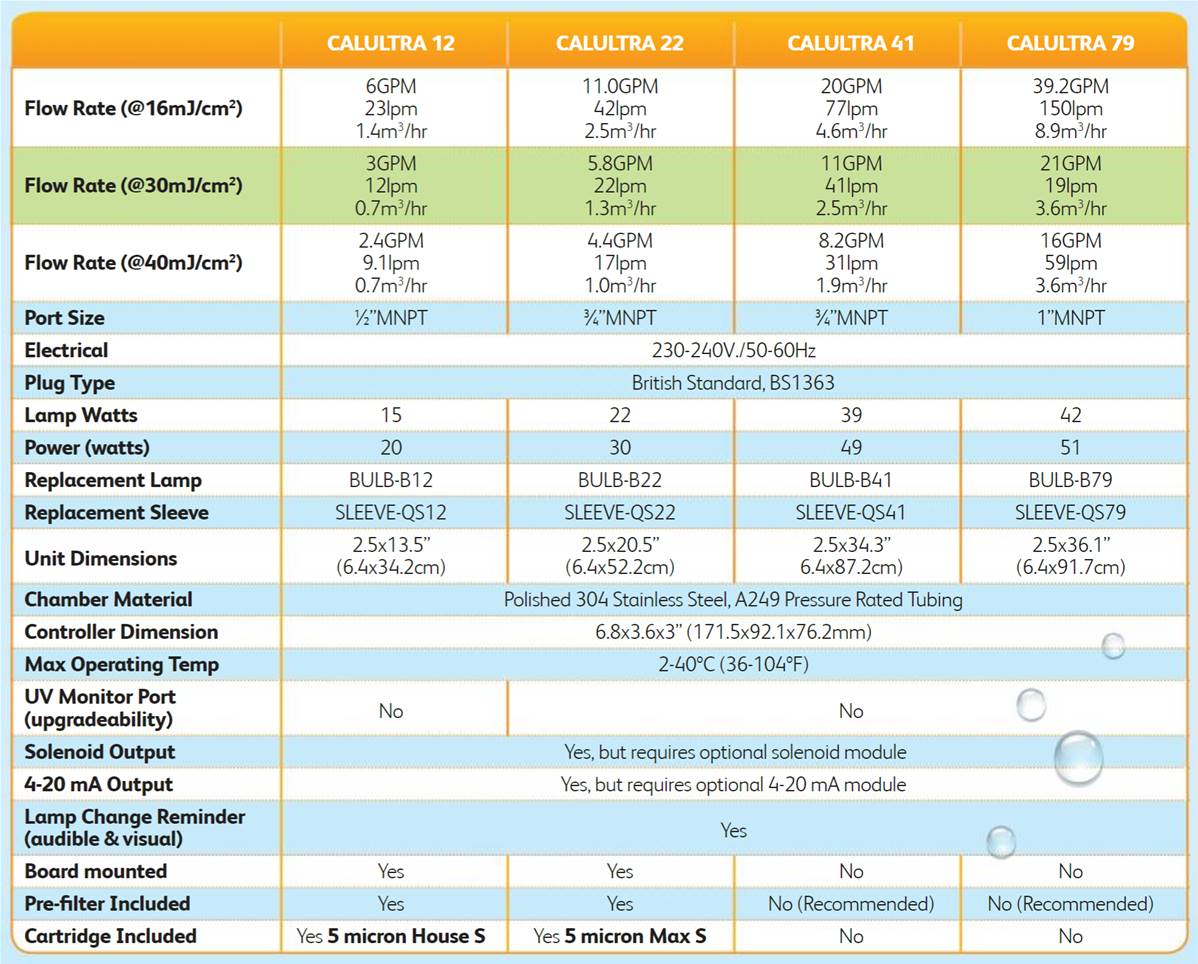

  4. To find out more details about the product. Have a look at the following product spreadsheet.
