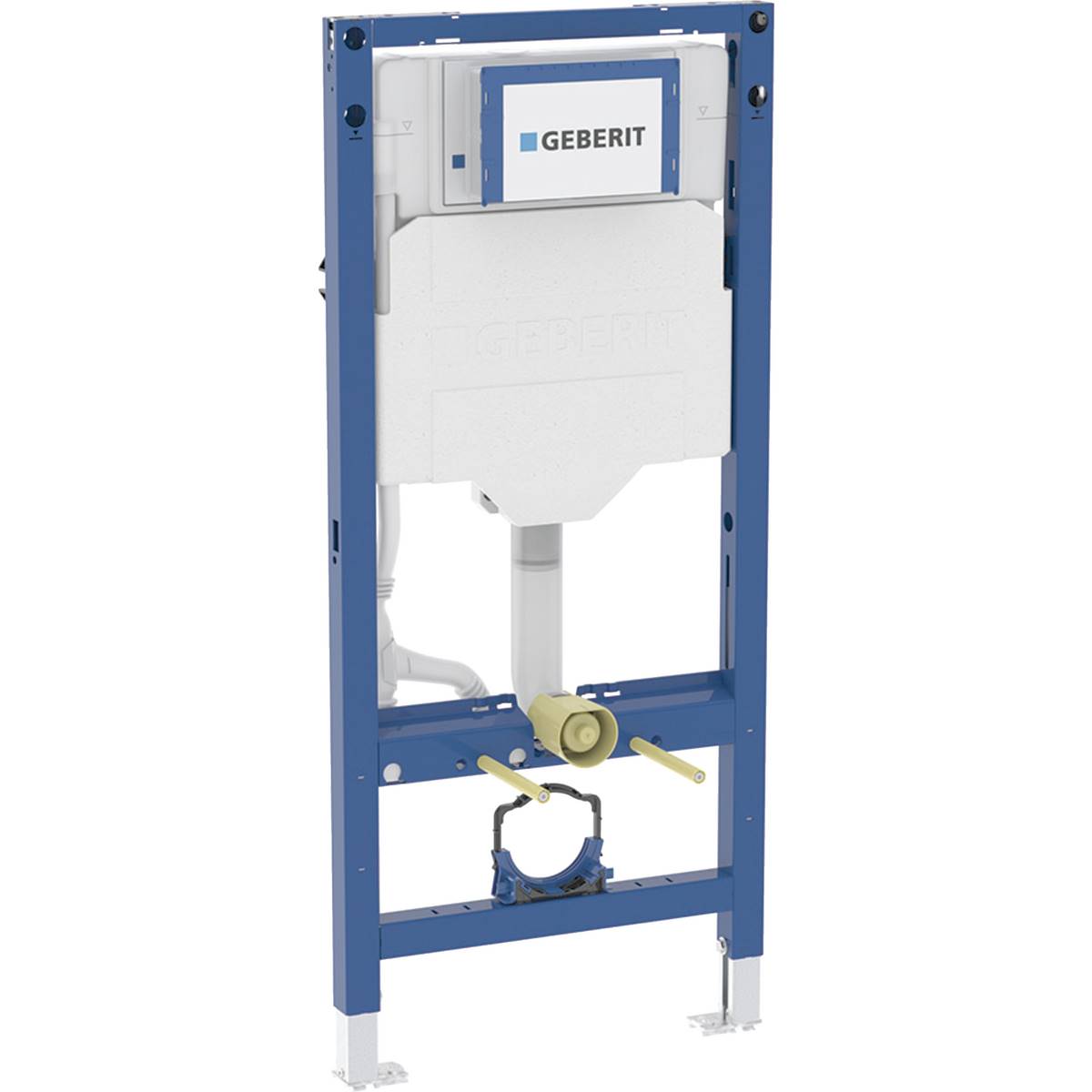

Geberit Duofix 112cm WC Frame with Sigma Concealed Cistern 12cm 111.384.00.6
Geberit Duofix 112cm WC Frame with Sigma Concealed Cistern 12cm 111.384.00.6Geberit Duofix 112cm WC Frame with Sigma Concealed Cistern 12cm 111.384.00.6Geberit Duofix 112cm WC Frame with Sigma Concealed Cistern 12cm 111.384.00.6

Geberit Duofix 112cm WC Frame with Sigma Concealed Cistern 12cm 111.384.00.6

(Code: 111.384.00.6)
Geberit
This Slimline Geberit Sigma Concealed Cistern 8cmD with a construction height of 114cm is perfect for when space is at a premium, suited for quick and easy installation in part-height or room-height pre-wall or partition walls and for use with wall-hung toilet pans with a projection up to 700mm.
£ 239.95
0g
-+
Add to cart
@import url(https://fonts.googleapis.com/css?family=Lato:100,400); #the-final-countdown { background: #333; font-family: 'Lato', sans-serif; text-align: center; color: #eee; text-shadow: 1px 1px 5px black; padding: 1rem 0; font-size: 3rem; border: 1px solid #000; }
PAYPAL CREDIT
Finance options available
EXPRESS DELIVERY*
Order before 1pm
FREE DELIVERY
On orders over £10*
RATED EXCELLENT
Read reviews

  1. Description of Geberit Duofix 112cm WC Frame with Sigma Concealed Cistern 12cm 111.384.00.6:



    This product is designed for use in drywall construction and is suitable for both part-height and full-height prewall installations, as well as full-height installation walls. It is compatible with Geberit Duofix system walls in both part and full-height configurations. The system is intended for wall-hung WCs with connection dimensions compliant with EN 33:2011 and supports toilet projections of up to 62 cm. It is also suitable for floor constructions with heights ranging from 0 to 20 cm.

    Features:
    • Statically self-supporting frame, protected against corrosion with powder coating
    • Frame with ψ 9 mm drilling holes for fastening in wood frame construction
    • Frame prepared for support brackets for WC ceramic appliances with small contact surfaces
    • Galvanized feet
    • Feet adjustable 0–20 cm
    • Non-slip leg supports
    • Rotatable foot plates
    • Foot plate depth suitable for installation in U-profiles UW 50 and UW75 and Geberit Duofix system rails
    • Connection bend can be mounted without tools at different depths, adjustable range 45 mm
    • Fastening for connection bend, sound-absorbing
    • Concealed cistern with front actuation
    • Concealed cistern, fully insulated against condensation
    • Cistern fulfils standard requirements in accordance with EN 14055, Class II
    • Immediate post flush possible with factory setting
    • Tool-free installation and maintenance work on concealed cistern
    • Water supply connection on the rear or top centre
    • Protection cover box for service opening protects against moisture and dirt
    • Protection box for service opening can be cut to length
    • With conduit pipe for feed pipe for Geberit AquaClean shower toilets and for connection cable
    • Fastening option for electrical connection
    • Power & Connect Box mountable

  2. Features of Geberit Duofix 112cm WC Frame with Sigma Concealed Cistern 12cm 111.384.00.6:

    ✔ Self-supporting, corrosion-resistant frame with powder coating for durability and stability.
    ✔ Height-adjustable galvanized feet (0–20 cm) with non-slip supports and rotatable foot plates.
    ✔ Tool-free installation and maintenance of the concealed cistern.
    ✔ Front-actuated, fully insulated concealed cistern to prevent condensation.
    ✔ Compliant with EN 14055, Class II standard for performance and quality.
    ✔ Tool-free, adjustable connection bend with a 45 mm depth range and sound-absorbing fastening.
    ✔ Compatible with Geberit Duofix system rails and UW 50/UW 75 profiles for flexible installation.
    ✔ Immediate post-flush capability with factory settings.

  3.

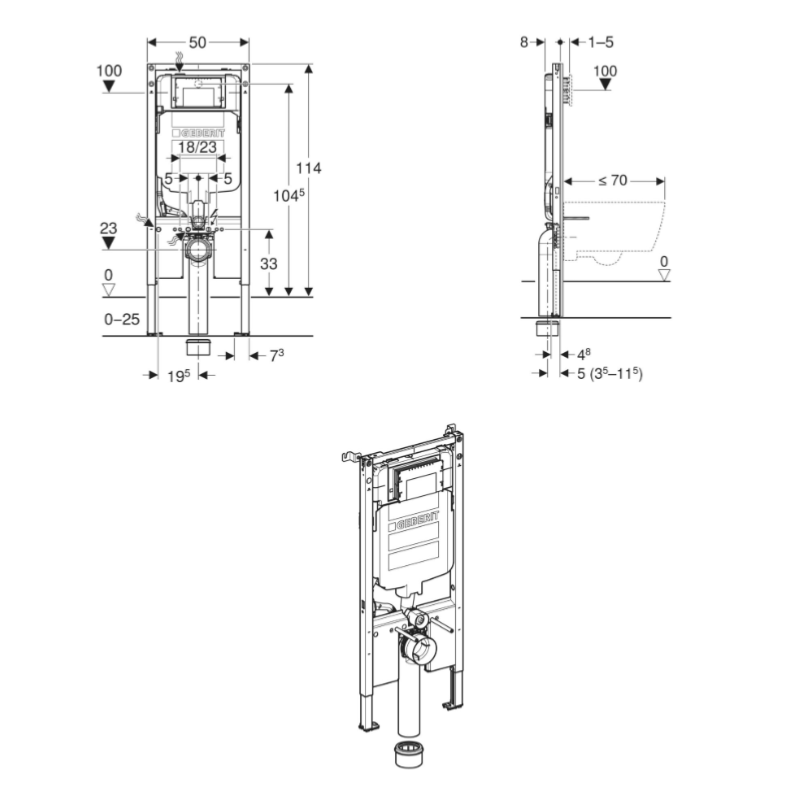

  4. To find out more details about the product. Have a look at the following product spreadsheet.
