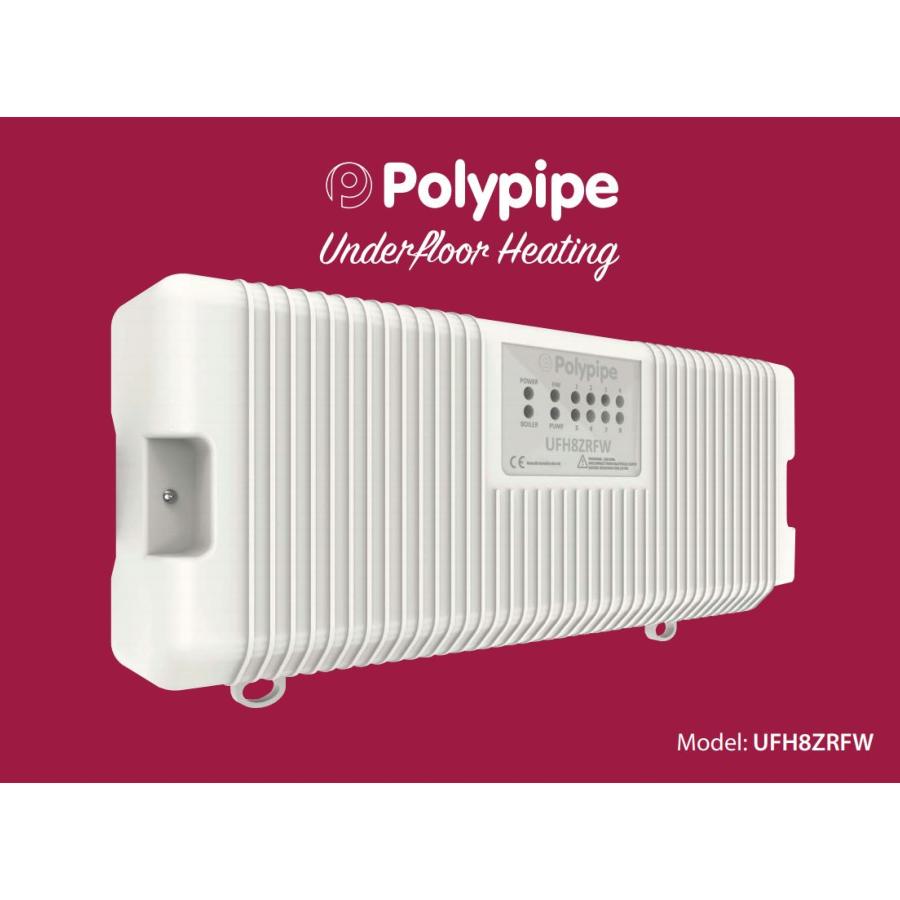

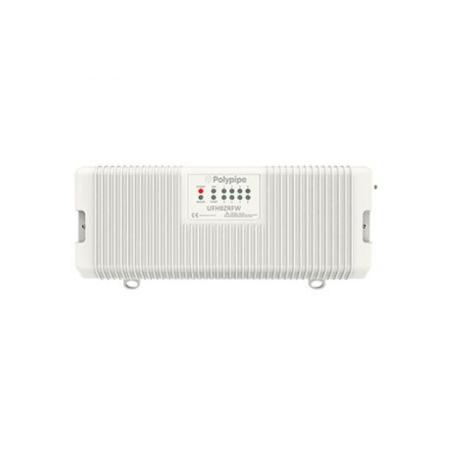

Polypipe White 8 Zone Wiring Centre (Wireless) 230v AC - UFH8ZRFW Underfloor heating control

(Code: UFH8ZRFW)
The UFH8ZRFW is an 8 Zone central wiring centre for use with PolypipeRF thermostats.The UFH8ZRFW can be used to control any actuator or valve whichrequires a 230v AC signal to open. For mid position valves and thoserequiring a closing signal, a changeover relay isrequired. At the same time the UFH8ZRFW oers the ability to operate a boiler orother heat source through a volt free output with changeover contacts,which gives you both a heat on signal and a heat o signal.Additional outputs designed for use with hot water or underoorheating systems, are also included asstandard.

These are the pumpand valve outputs which would normally operate a manifold pumpor a manifold valve, and the H/W output which is used to send a hotwater on and hot water o signal. Any output which is not neededcan be ignored.

99 channel numbers are available allowing to 99 dierent UFH8ZRFWwiring centresto be operated in close proximity. With 8 thermostatsper wiring centre this gives you up to 792 distinct heating zones. When wiring directly to the heatsource is not possible, a radio link isprovided to remotely enable a separate receiver, the UFHBSW.Testswitches are included for the installation engineer and furtheroptions include creepage protection and pump delay
£ 105.00
1500g
@import url(https://fonts.googleapis.com/css?family=Lato:100,400); #the-final-countdown { background: #333; font-family: 'Lato', sans-serif; text-align: center; color: #eee; text-shadow: 1px 1px 5px black; padding: 1rem 0; font-size: 3rem; border: 1px solid #000; }

100% Secure Payments

Free delivery on orders over £50*/

Next day delivery available

  1. Description of the article Polypipe White 8 Zone Wiring Centre (Wireless) 230v AC - UFH8ZRFW Underfloor heating control



    The UFH8ZRFW is an 8 Zone central wiring centre for use with PolypipeRF thermostats.

    The UFH8ZRFW can be used to control any actuator or valve whichrequires a 230v AC signal to open.

    For mid position valves and thoserequiring a closing signal, a changeover relay isrequired.At the same time the UFH8ZRFW oers the ability to operate a boiler orother heat source through a volt free output with changeover contacts,which gives you both a heat on signal and a heat o signal.

    Additional outputs designed for use with hot water or underoorheating systems, are also included asstandard.

    These are the pumpand valve outputs which would normally operate a manifold pumpor a manifold valve, and the H/W output which is used to send a hotwater on and hot water o signal. Any output which is not neededcan be ignored.

    99 channel numbers are available allowing to 99 dierent UFH8ZRFWwiring centresto be operated in close proximity. With 8 thermostatsper wiring centre this gives you up to 792 distinct heating zones. When wiring directly to the heatsource is not possible, a radio link isprovided to remotely enable a separate receiver, the UFHBSW.Testswitches are included for the installation engineer and furtheroptions include creepage protection and pump delay
  2. ✔ Creepage funtion for Hot weather: Once enabled the UFH8ZRFW will operate each valve or pump for 1 minute, only if the outputs have not been operated by a thermostat, within the preceding 24 hours
    ✔ Pump Delay:This function delays the operation of the pump and boiler for 2 minutesto give the actuators and valves time to open.
    ✔ Engineers Test Switches: These switches allow the installation engineer to test the operation of the valves, actuators, pumps hot water or boiler, without having to install the thermostats
    ✔ Operation: Each RF thermostat used on this system can be congured as a thermostat for either a radiator zone, underoor heating zone or inEach RF thermostat used on this system can be congured as a thermostat for either a radiator zone, underoor heating zone or in
    ✔ Part number: UFH8ZRFW
  3.
  4. To find out more details about the product. Have a look on the following instructions.
