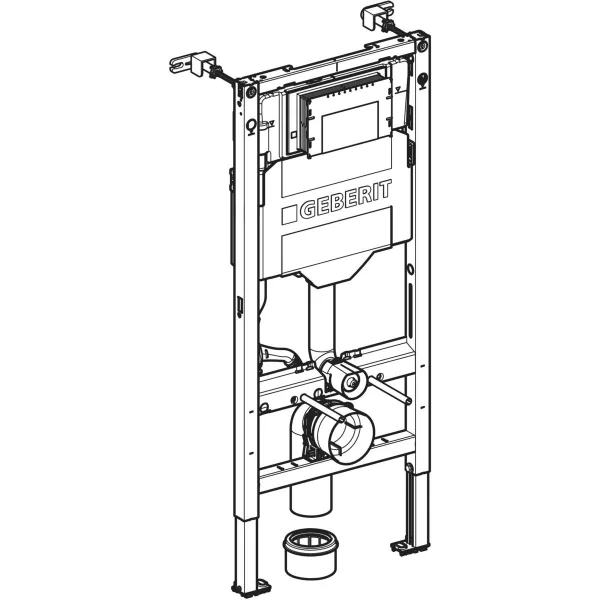

Geberit Duofix 112cm WC Frame with Sigma Concealed Cistern 12cm 111.383.00.6
Geberit Duofix 112cm WC Frame with Sigma Concealed Cistern 12cm 111.383.00.6Geberit Duofix 112cm WC Frame with Sigma Concealed Cistern 12cm 111.383.00.6Geberit Duofix 112cm WC Frame with Sigma Concealed Cistern 12cm 111.383.00.6Geberit Duofix 112cm WC Frame with Sigma Concealed Cistern 12cm 111.383.00.6

Geberit Duofix 112cm WC Frame with Sigma Concealed Cistern 12cm 111.383.00.6

(Code: 111.383.00.6)
Geberit
The Geberit Duofix Frame for Wall-Hung WCs (2025 range) is a robust, self-supporting installation system designed for metal or wood stud walls.
£ 274.90
0g
-+
Add to cart
@import url(https://fonts.googleapis.com/css?family=Lato:100,400); #the-final-countdown { background: #333; font-family: 'Lato', sans-serif; text-align: center; color: #eee; text-shadow: 1px 1px 5px black; padding: 1rem 0; font-size: 3rem; border: 1px solid #000; }
PAYPAL CREDIT
Finance options available
EXPRESS DELIVERY*
Order before 1pm
FREE DELIVERY
On orders over £10*
RATED EXCELLENT
Read reviews

  1. Description of Geberit Duofix 112cm WC Frame with Sigma Concealed Cistern 12cm 111.383.00.6:



    The Geberit Duofix Frame for Wall-Hung WCs (2025 range) is a robust, self-supporting installation system designed for metal or wood stud walls, Geberit Duofix system walls, and both part- and full-height prewalls or partition walls. Featuring a corrosion-resistant powder-coated frame, this unit supports wall-hung toilets with projections up to 70 cm and includes a fully insulated Sigma concealed cistern (12 cm) compatible with single, dual, and stop-and-go flush actuation. The system ensures quick, tool-free installation and maintenance, with flexible connection options for water supply and adjustable depth for the connection bend. Designed for modern bathroom solutions, it includes conduit for Geberit AquaClean shower toilets, a protection box for the service opening, and fastening points for electrical connections and the Power & Connect Box. Certified to EN 14055 (Class II), it operates at flow pressures from 0.1 to 10 bar and supports floor constructions from 0 to 25 cm.

    APPLICATION PURPOSES
    • For metal and wood frame walls
    • For Geberit Duofix system walls
    • For installation in part- or room-height prewalls
    • For installation in room-height partition walls
    • For floor constructions 0–25 cm
    • For wall-hung WCs

    CHARACTERISTICS
    • 2025 range
    • Statically self-supporting frame, protected against corrosion with powder coating
    • Frame for wall-hung WCs with connection dimensions as per EN 33 and projection up to 70 cm
    • With pull-out plate for lateral fastening above the element on metal or wood profiles or on Geberit Duofix system studs
    • Alternative fastening point for wall anchors
    • Rotating foot plates, suitable for installation in U profiles UW 50 and UW 75
    • Foot plates that can be mounted in Geberit Duofix system rail without tools, without additional components
    • Galvanised non-slip leg supports protected against corrosion
    • Connection bend can be mounted without tools at different depths, adjustable range 45 mm
    • Geberit Sigma concealed cistern 12 cm, fully insulated against condensation
    • Cistern fulfils standard requirements in accordance with EN 14055, Class II
    • For front actuation, suitable for single, dual and stop-and-go flushes
    • Immediate post flush possible with factory setting
    • Tool-free installation and maintenance work on concealed cistern
    • Water supply connection on the rear or top centre
    • Protection box for service opening, can be cut to length, protects against moisture and dirt
    • With conduit pipe for feed pipe for Geberit AquaClean shower toilets and for connection cable
    • Fastening for electrical connection and Power & Connect Box

  2. Features of Geberit Duofix 112cm WC Frame with Sigma Concealed Cistern 12cm 111.383.00.6:

    ✔ Includes installation kit
    ✔ Easy-clean design
    ✔ Hidden fixings/brackets
    ✔ Water-saving technology
    ✔ Corrosion-resistant materials

  3.
  4. To find out more details about the product. Have a look at the following product spreadsheet.
