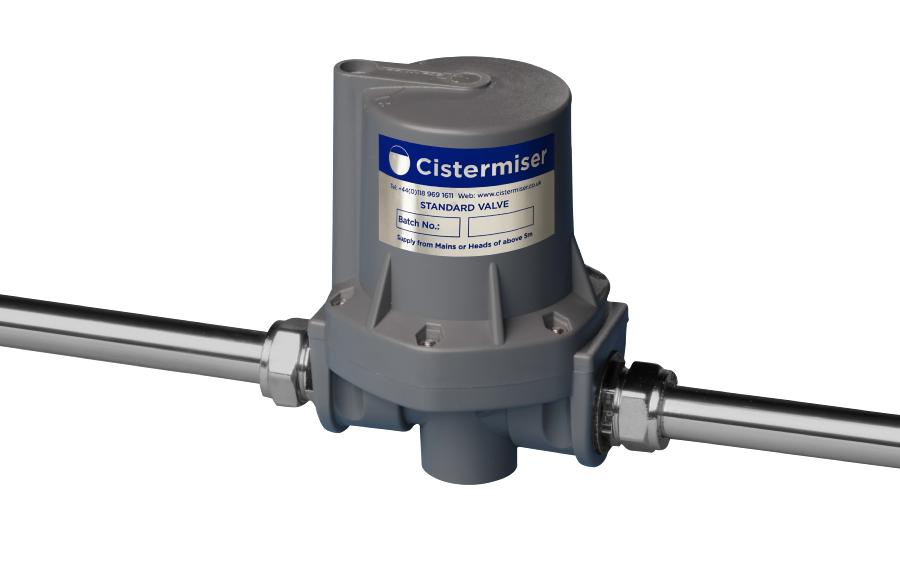

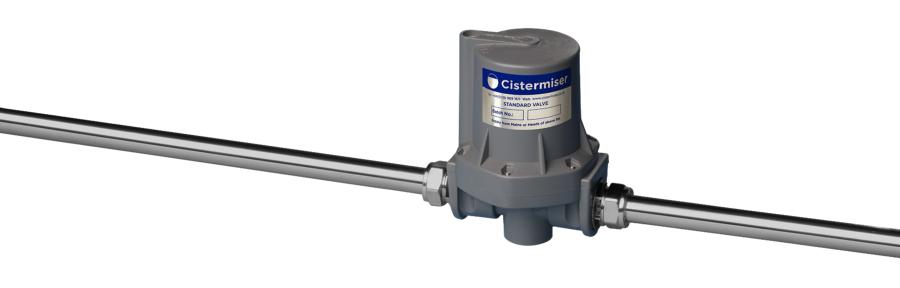

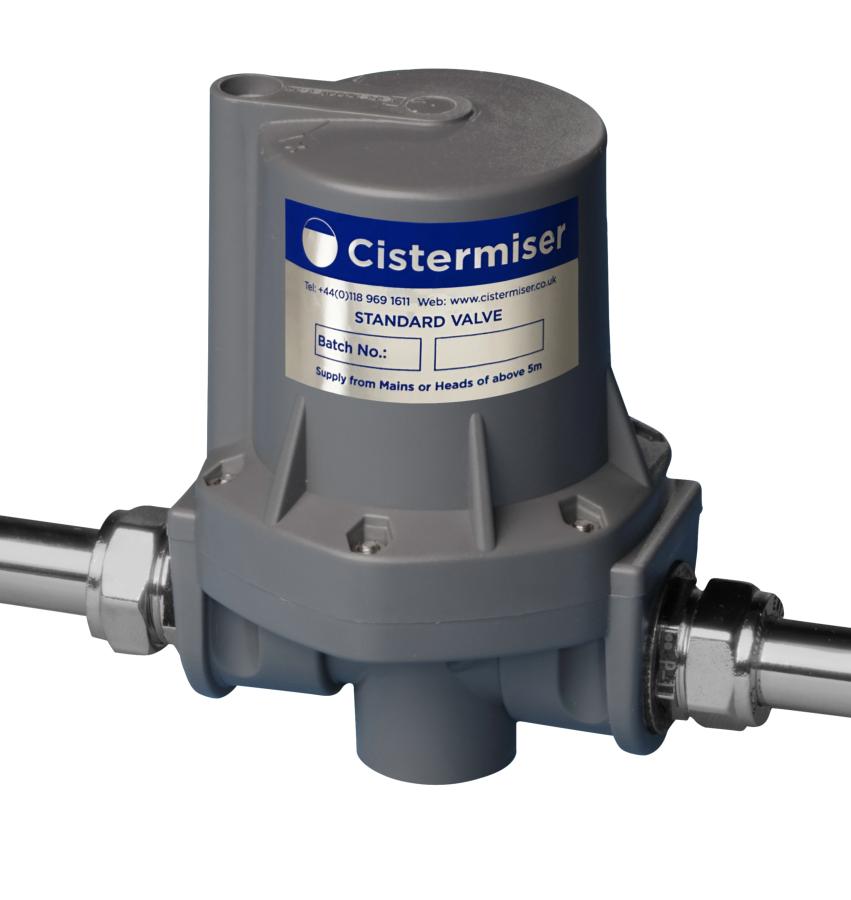

Cistermiser Standard Hydraulic Valve STD

(Code: STD)
OUT OF STOCK
Cistermiser
Hydraulic valve mechanism, no electrical supply or batteries required, 1/2" BSP (15mm), Standard model suitable for supply system pressures of between 0.5 and 6.0 bar, for cistern-flushing applications
£ 174.99
£ 134.08
-23%
600g
@import url(https://fonts.googleapis.com/css?family=Lato:100,400); #the-final-countdown { background: #333; font-family: 'Lato', sans-serif; text-align: center; color: #eee; text-shadow: 1px 1px 5px black; padding: 1rem 0; font-size: 3rem; border: 1px solid #000; }
  1. Description of Cistermiser Standard Hydraulic Valve STD:



    The Hydraulic Control Valve is an automatic urinal flush control valve. The valve uses a unique and simple mechanism which prevents water waste by ensuring that the auto-flush cistern is only filled, and can only flush, when the washroom is used.

    The Hydraulic Control Valve is installed on the supply pipe to the urinal cistern. The valve is activated by short-term pressure drops created by use of taps or WCs on the same supply. The valve is normally closed; when it is activated it opens and water passes to the urinal cistern until the pressures on both sides of the valve are equalised. When the cistern is full the auto-siphon will flush.
  2. Features of Cistermiser Standard Hydraulic Valve STD:

    ✔ Automatic urinal flush control valve
    ✔ Unique hydraulic control mechanism - no electrical supply or batteries required
    ✔ Industry leader with more than half a million valves already installed
    ✔ "Fit and forget" quality and reliability
    ✔ Reduces water consumption and washroom odours
  3.
  4. To find out more details about the product. Have a look at the following product spreadsheet.


  5. To know more about this product, watch the following video.
